Equipment Catalog

Industrial Factory & Workshop

High-performance heating and cooling solutions for factory and workshop scenarios.

26 Sub-categories

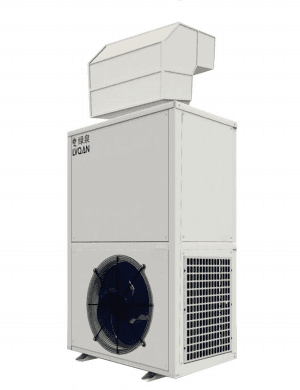

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-09

Stable heating down to -30°C for workshop and commercial scenarios

Dimensions (L×W×H): 960 × 620 × 1900 mm

Technical Parameters
Main Unit Model	LQ-09
Power Supply	220V~50Hz
Heating Capacity (7°C)	9.0 kW
Heating Input Power (7°C)	2.6 kW
Heating Capacity (-7°C)	7.5 kW
Heating Input Power (-7°C)	2.5 kW
Heating Capacity (-12°C)	6.0 kW
Heating Input Power (-12°C)	2.3 kW
Heating Capacity (-20°C)	5.1 kW
Heating Input Power (-20°C)	2.55 kW
Heating Capacity (-25°C)	4.8 kW
Heating Input Power (-25°C)	2.66 kW
Cooling Capacity (Ambient 35°C)	7.5 kW
Cooling Input Power	2.7 kW
Circulating Air Volume	1200 m³/h
Max Input Power / Current	3.3 kW / 13.5 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-15

Stable heating down to -30°C for workshop and commercial scenarios

Dimensions (L×W×H): 1060 × 620 × 1640 mm

Technical Parameters
Main Unit Model	LQ-15
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	15.0 kW
Heating Input Power (7°C)	4.7 kW
Heating Capacity (-7°C)	12.5 kW
Heating Input Power (-7°C)	4.1 kW
Heating Capacity (-12°C)	10.0 kW
Heating Input Power (-12°C)	4.3 kW
Heating Capacity (-20°C)	8.5 kW
Heating Input Power (-20°C)	4.25 kW
Heating Capacity (-25°C)	8.0 kW
Heating Input Power (-25°C)	4.44 kW
Cooling Capacity (Ambient 35°C)	12.5 kW
Cooling Input Power	5.3 kW
Circulating Air Volume	2000 m³/h
Max Input Power / Current	6.0 kW / 12.0 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Stable heating down to -30°C for workshop and commercial scenarios

Dimensions (L×W×H): 1500 × 900 × 900 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

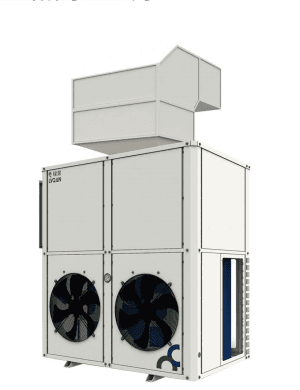

Industrial Cooling & Heating Integrated Unit

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-45

Stable heating down to -30°C for workshop and commercial scenarios

Dimensions (L×W×H): 1760 × 1160 × 1940 mm

Technical Parameters
Main Unit Model	LQ-45
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	45.0 kW
Heating Input Power (7°C)	14.1 kW
Heating Capacity (-7°C)	37.5 kW
Heating Input Power (-7°C)	12.3 kW
Heating Capacity (-12°C)	30.0 kW
Heating Input Power (-12°C)	12.9 kW
Heating Capacity (-20°C)	25.5 kW
Heating Input Power (-20°C)	12.75 kW
Heating Capacity (-25°C)	24.0 kW
Heating Input Power (-25°C)	13.32 kW
Cooling Capacity (Ambient 35°C)	37.5 kW
Cooling Input Power	14.4 kW
Circulating Air Volume	12000 m³/h
Max Input Power / Current	16.5 kW / 31.5 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-60

Stable heating down to -30°C for workshop and commercial scenarios

Dimensions (L×W×H): 2260 × 1100 × 2180 mm

Technical Parameters
Main Unit Model	LQ-60
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	60.0 kW
Heating Input Power (7°C)	18.8 kW
Heating Capacity (-7°C)	50.0 kW
Heating Input Power (-7°C)	16.4 kW
Heating Capacity (-12°C)	40.0 kW
Heating Input Power (-12°C)	17.2 kW
Heating Capacity (-20°C)	34.0 kW
Heating Input Power (-20°C)	17.0 kW
Heating Capacity (-25°C)	32.0 kW
Heating Input Power (-25°C)	17.76 kW
Cooling Capacity (Ambient 35°C)	50.0 kW
Cooling Input Power	19.2 kW
Circulating Air Volume	15000 m³/h
Max Input Power / Current	25.14 kW / 48 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-09

Stable heating down to -30°C for workshop and commercial scenarios

Dimensions (L×W×H): 960 × 620 × 1900 mm

Technical Parameters
Main Unit Model	LQ-09
Power Supply	220V~50Hz
Heating Capacity (7°C)	9.0 kW
Heating Input Power (7°C)	2.6 kW
Heating Capacity (-7°C)	7.5 kW
Heating Input Power (-7°C)	2.5 kW
Heating Capacity (-12°C)	6.0 kW
Heating Input Power (-12°C)	2.3 kW
Heating Capacity (-20°C)	5.1 kW
Heating Input Power (-20°C)	2.55 kW
Heating Capacity (-25°C)	4.8 kW
Heating Input Power (-25°C)	2.66 kW
Cooling Capacity (Ambient 35°C)	7.5 kW
Cooling Input Power	2.7 kW
Circulating Air Volume	1200 m³/h
Max Input Power / Current	3.3 kW / 13.5 A
Operating Ambient Temperature	-30°C ~ 42°C

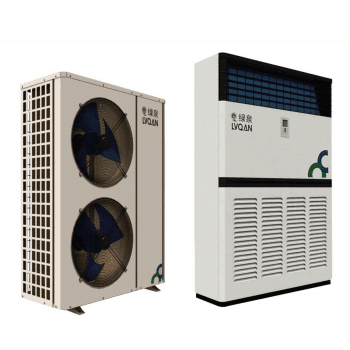

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-15

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 930 × 650 × 2330 mm | Outdoor (L): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-15
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	15.0 kW
Heating Input Power (7°C)	4.7 kW
Heating Capacity (-7°C)	12.5 kW
Heating Input Power (-7°C)	4.1 kW
Heating Capacity (-12°C)	10.0 kW
Heating Input Power (-12°C)	4.3 kW
Heating Capacity (-20°C)	8.5 kW
Heating Input Power (-20°C)	4.25 kW
Heating Capacity (-25°C)	8.0 kW
Heating Input Power (-25°C)	4.44 kW
Cooling Capacity (Ambient 35°C)	12.5 kW
Cooling Input Power	5.3 kW
Circulating Air Volume	2000 m³/h
Max Input Power / Current	6.0 kW / 12.0 A
Operating Ambient Temperature	-30°C ~ 42°C

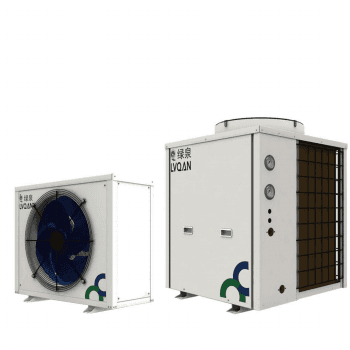

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): 1760 × 1160 × 1940 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-60

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): 2260 × 1100 × 2180 mm

Technical Parameters
Main Unit Model	LQ-60
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	60.0 kW
Heating Input Power (7°C)	18.8 kW
Heating Capacity (-7°C)	50.0 kW
Heating Input Power (-7°C)	16.4 kW
Heating Capacity (-12°C)	40.0 kW
Heating Input Power (-12°C)	17.2 kW
Heating Capacity (-20°C)	34.0 kW
Heating Input Power (-20°C)	17.0 kW
Heating Capacity (-25°C)	32.0 kW
Heating Input Power (-25°C)	17.76 kW
Cooling Capacity (Ambient 35°C)	50.0 kW
Cooling Input Power	19.2 kW
Circulating Air Volume	15000 m³/h
Max Input Power / Current	25.14 kW / 48 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 1200 × 390 × 1720 mm | Outdoor (L): 930 × 570 × 1500 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 940 × 500 × 1500 mm | Outdoor (L): 930 × 570 × 1500 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 940 × 440 × 1500 mm | Outdoor (L): 930 × 570 × 1500 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 1200 × 390 × 1720 mm | Outdoor (L): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 940 × 500 × 1500 mm | Outdoor (L): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 940 × 440 × 1500 mm | Outdoor (L): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 940 × 440 × 1500 mm | Outdoor (L): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (L): 1105 × 490 × 750 mm | Outdoor (R): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (L): 1105 × 490 × 750 mm | Outdoor (R): 930 × 570 × 1500 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 1470 × 800 × 800 mm | Outdoor (L): 930 × 570 × 1500 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-24

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 1470 × 800 × 800 mm | Outdoor (L): 800 × 800 × 1060 mm

Technical Parameters
Main Unit Model	LQ-24
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	25.14 kW
Heating Input Power (7°C)	6.74 kW
Heating Capacity (-7°C)	21.14 kW
Heating Input Power (-7°C)	6.63 kW
Heating Capacity (-12°C)	17.14 kW
Heating Input Power (-12°C)	6.4 kW
Heating Capacity (-20°C)	14.74 kW
Heating Input Power (-20°C)	6.8 kW
Heating Capacity (-25°C)	13.83 kW
Heating Input Power (-25°C)	7.11 kW
Cooling Capacity (Ambient 35°C)	24.8 kW
Cooling Input Power	8.0 kW
Circulating Air Volume	4000-6000 m³/h
Max Input Power / Current	8.8 kW / 16.8 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-30

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 1200 × 390 × 1720 mm | Outdoor (L): 1425 × 440 × 1765 mm

Technical Parameters
Main Unit Model	LQ-30
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	31.4 kW
Heating Input Power (7°C)	8.4 kW
Heating Capacity (-7°C)	26.4 kW
Heating Input Power (-7°C)	8.3 kW
Heating Capacity (-12°C)	21.4 kW
Heating Input Power (-12°C)	8.0 kW
Heating Capacity (-20°C)	18.4 kW
Heating Input Power (-20°C)	8.5 kW
Heating Capacity (-25°C)	17.3 kW
Heating Input Power (-25°C)	8.9 kW
Cooling Capacity (Ambient 35°C)	31.0 kW
Cooling Input Power	10.0 kW
Circulating Air Volume	8000 m³/h
Max Input Power / Current	11.0 kW / 20.9 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-45

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor (R): 4420 × 490 × 750 mm | Outdoor (L): 1425 × 440 × 1765 mm

Technical Parameters
Main Unit Model	LQ-45
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	45.0 kW
Heating Input Power (7°C)	14.1 kW
Heating Capacity (-7°C)	37.5 kW
Heating Input Power (-7°C)	12.3 kW
Heating Capacity (-12°C)	30.0 kW
Heating Input Power (-12°C)	12.9 kW
Heating Capacity (-20°C)	25.5 kW
Heating Input Power (-20°C)	12.75 kW
Heating Capacity (-25°C)	24.0 kW
Heating Input Power (-25°C)	13.32 kW
Cooling Capacity (Ambient 35°C)	37.5 kW
Cooling Input Power	14.4 kW
Circulating Air Volume	12000 m³/h
Max Input Power / Current	16.5 kW / 31.5 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-45

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor: 1740 × 800 × 1780 mm | Outdoor: 1425 × 440 × 1765 mm

Technical Parameters
Main Unit Model	LQ-45
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	45.0 kW
Heating Input Power (7°C)	14.1 kW
Heating Capacity (-7°C)	37.5 kW
Heating Input Power (-7°C)	12.3 kW
Heating Capacity (-12°C)	30.0 kW
Heating Input Power (-12°C)	12.9 kW
Heating Capacity (-20°C)	25.5 kW
Heating Input Power (-20°C)	12.75 kW
Heating Capacity (-25°C)	24.0 kW
Heating Input Power (-25°C)	13.32 kW
Cooling Capacity (Ambient 35°C)	37.5 kW
Cooling Input Power	14.4 kW
Circulating Air Volume	12000 m³/h
Max Input Power / Current	16.5 kW / 31.5 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-75

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor: 1800 × 1100 × 2240 mm | Outdoor: 1570 × 1150 × 2085 mm

Technical Parameters
Main Unit Model	LQ-75
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	75.0 kW
Heating Input Power (7°C)	23.5 kW
Heating Capacity (-7°C)	62.5 kW
Heating Input Power (-7°C)	20.5 kW
Heating Capacity (-12°C)	50.0 kW
Heating Input Power (-12°C)	21.5 kW
Heating Capacity (-20°C)	42.5 kW
Heating Input Power (-20°C)	21.25 kW
Heating Capacity (-25°C)	40.0 kW
Heating Input Power (-25°C)	22.2 kW
Cooling Capacity (Ambient 35°C)	62.5 kW
Cooling Input Power	24.0 kW
Circulating Air Volume	7000-15000 m³/h
Max Input Power / Current	27.5 kW / 60 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-90

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor: 2450 × 1000 × 1950 mm | Outdoor: 2400 × 1300 × 2400 mm

Technical Parameters
Main Unit Model	LQ-90
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	90.0 kW
Heating Input Power (7°C)	28.2 kW
Heating Capacity (-7°C)	75.0 kW
Heating Input Power (-7°C)	24.6 kW
Heating Capacity (-12°C)	60.0 kW
Heating Input Power (-12°C)	25.8 kW
Heating Capacity (-20°C)	51.0 kW
Heating Input Power (-20°C)	25.5 kW
Heating Capacity (-25°C)	48.0 kW
Heating Input Power (-25°C)	26.6 kW
Cooling Capacity (Ambient 35°C)	75.0 kW
Cooling Input Power	28.8 kW
Circulating Air Volume	15000-20000 m³/h
Max Input Power / Current	33 kW / 66 A
Operating Ambient Temperature	-30°C ~ 42°C

Factory/Commercial Ultra-Low Temperature Heat Pump AC LQ-150

Split configuration for workshop and commercial heating scenarios

Dimensions (L×W×H): Indoor: 2450 × 1000 × 1950 mm | Outdoor: 2400 × 1300 × 2400 mm

Technical Parameters
Main Unit Model	LQ-150
Power Supply	380V 3N~50Hz
Heating Capacity (7°C)	150.0 kW
Heating Input Power (7°C)	47.0 kW
Heating Capacity (-7°C)	125.0 kW
Heating Input Power (-7°C)	41.0 kW
Heating Capacity (-12°C)	100.0 kW
Heating Input Power (-12°C)	43.0 kW
Heating Capacity (-20°C)	85.0 kW
Heating Input Power (-20°C)	42.5 kW
Heating Capacity (-25°C)	80.0 kW
Heating Input Power (-25°C)	44.4 kW
Cooling Capacity (Ambient 35°C)	125.0 kW
Cooling Input Power	48.76 kW
Circulating Air Volume	25000 m³/h
Max Input Power / Current	55 kW / 104.5 A
Operating Ambient Temperature	-30°C ~ 42°C
